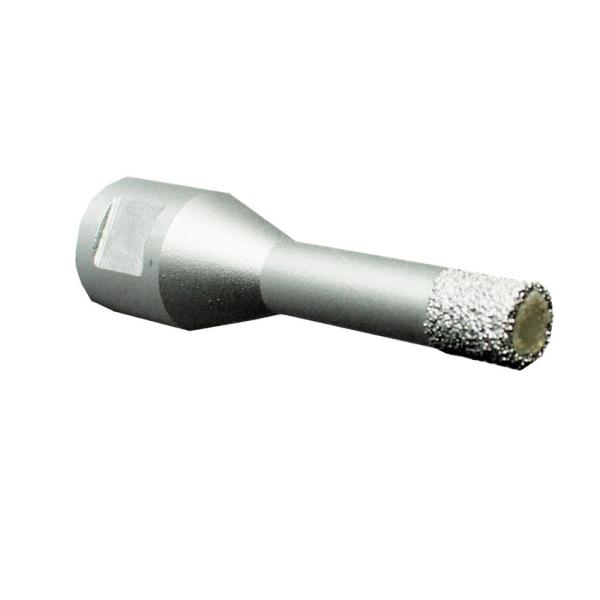

Dry Diamond Core Drill Bits 10×10×60×M14 for Porcelain Ganite tile
Glass Ceramics Marble Drill Bits With High Quality
Specification : Diameter :5-40mm
Diamond width :10mm
Fast, smooth drilling and long life
Grit: #30,#40,#50,as customer request.
Thread: M14 Shank.
Special design are available upon request
Feature :
Durable and long lasting: The head is vacuum brazed diamond, with
high quality carbon steel body, they are durable and long lasting.
It can cut clean and precise hole on applying material.
It's wonderful to have these drill bits in people's tools
collection, to be ready whenever people need to drill holes on
glass, marble, ceramics, bottles, porcelain, Quartz, tiles,
porcelain tile, fish tanks, limestone, slate, marble, granite,
stone and etc.
Universal fit: Suitable for electric drill. Easy to use - Start
your hole diagonally, make a round trace and then hold drill
straight. Use it with high speed electric drills, angle grinders.
Good for drilling: both dry and wet drilling are OK. It is very
convenient.
| item | value |
| Product information | Diamond Core Drills |
| Wheel Type | Angle Grinding Wheels |
| Size | 10×10×60×M14 |
| Customized support | OEM, ODM |
| Place of Origin | Jiangsu China |
| Brand Name | HUACHANG |
| Shape | M14 |
| Hardness | Hard |
| Viscosity | Good |
| Process Type | vacuum brazed |
| Abrasive | diamond |
| Product name | Diamond Core Drills bit for porcelain / Ceramic |
| Production Experience | From 1980s |
| Package | Inner Box+Outer Carton |
| Advantage: | imporved efficiency,cutting life and operator safety |
| Business Scope | Diamond cutting blade ,TCT saw blade ,Abrasive tools , Core drill
bit , Segment , Wire saw ,Concrete product |
| size | Diameter | Grit | Diamond Width | Effective Total Length | shank |
| 5×10×60×M14 | 5MM | #40 | 10MM | 60MM | M14 |
| 6×10×60×M14 | 6MM | #40 | 10MM | 60MM | M14 |
| 8×10×60×M14 | 8MM | #40 | 10MM | 60MM | M14 |
| 10×10×60×M14 | 10MM | #40 | 10MM | 60MM | M14 |
| 12×10×60×M14 | 12MM | #40 | 10MM | 60MM | M14 |
| 14×10×60×M14 | 14MM | #40 | 10MM | 60MM | M14 |
| 16×10×60×M14 | 16MM | #40 | 10MM | 60MM | M14 |
| 20×10×60×M14 | 20MM | #40 | 10MM | 60MM | M14 |
| 22×10×60×M14 | 22MM | #40 | 10MM | 60MM | M14 |
| 27×10×60×M14 | 27MM | #40 | 10MM | 60MM | M14 |
| 28×10×60×M14 | 28MM | #40 | 10MM | 60MM | M14 |
| 30×10×60×M14 | 30MM | #40 | 10MM | 60MM | M14 |
| 32×10×60×M14 | 32MM | #40 | 10MM | 60MM | M14 |
| 35×10×60×M14 | 35MM | #40 | 10MM | 60MM | M14 |
| 37×10×60×M14 | 37MM | #40 | 10MM | 60MM | M14 |
| 40×10×60×M14 | 40MM | #40 | 10MM | 60MM | M14 |
JIANGSU HUACHANG TOOLS MANUFACTURING CO., LTD. was established in
1980s, and has a long history of more than 20 years. We are now a high technology
enterprise with the capability of production, sales, and research of new technology.
We are supported with a powerful technology team, advanced
production line, and inspection equipment. We strictly conform to lS09001-2000 quality control system, and IS014001-2004 environment
system. Inspection between processes follows the EN standard. Our aim is to make“HUACHANG ”famous all over the world.
