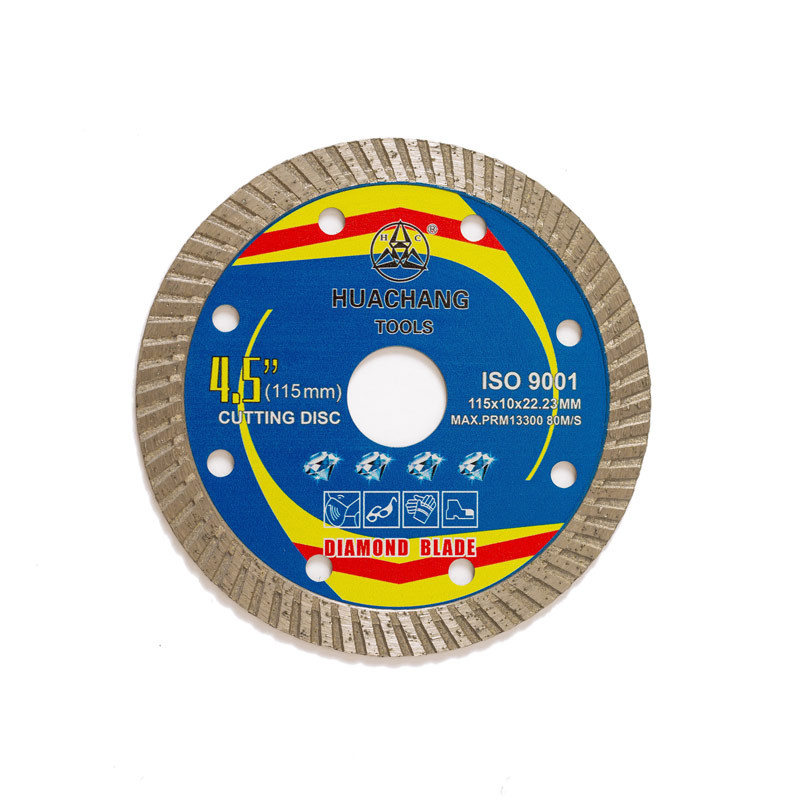

OSA MPA diamond wheel tile cutter blades 4.5inch 115mm porcelain
tile cutting disc 22.23mm
1) Specification is complete and varied.
2) Extra sharp segments ideal for smooth, neat and straight surface
cutting with minimum chipping as well as perfect sawn finish.
3) High performance consistency, never mark the stone and burns the
surface of the stone.
4) Designed to operate either wet or dry, extra sharp when wet
operating.
5) Continuous rim design further improves the cutting precision of
the blade.
6) Quality steel core provides extreme blade strength for deep cut.
7) Excellent wear resistance.
8) High cost-effective price.
9) High quality.
10) Easy to operate.
11) 24/7 personalized service.
| Quick Details |
| item | diamond saw blade |
| Product Name | 115mm sintered diamond blade |
| Applica ion | ceramic ,tile,granite,marble, concrete and brick |
| Material | Diamond Segment &65Mn Steel Body |
| Finishing: | Painted&Polished |
| SIZE | 115×1.2/2.0×10×22.23mm |
| Advantage: | Imporved efficiency,cutting life and operator safety |
| Quality Grade: | Hot Press Sintered Blade |
| Color | Black blue red purple green golden yellow |
| Process Type | Hot Press |
| Place of Origin | Jiangsu China |
| BrandName | HUACHANG |
| MOQ | 1000 Pieces |
| OEM | Accpted |
| Package | Inner Box+Outer Carton |
| Certification | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | Europe EN 13236 Standard |
| Main Market | Europe+America+France |
other more sizes
| SIZE(MM) | OUTER DIAMETER | ARBOR SIZE |
| INCHES | METRIC(MM) | INCHES | METRIC(MM) |
| 105×1.2/2.0×10×20 | 4" | 105 | | 20 |
| 110×1.2/2.0×10×20 | 4" | 110 | | 20 |
| 115×1.2/2.0×10×22.23 | 4.5" | 115 | 7/8'' | 22.23 |
| 125×1.2/2.0×10×22.23 | 5'' | 125 | 7/8'' | 22.23 |
| 150×1.4/2.4×10×22.23 | 6'' | 150 | 7/8'' | 22.23 |
| 180×1.6/2.6×10×22.23 | 7'' | 180 | 7/8'' | 22.23 |
| 200×1.6/2.6×10×22.23 | 8'' | 200 | 7/8'' | 22.23 |
| 230×1.8/3.0×10×22.23 | 9'' | 230 | 7/8'' | 22.23 |
| 300×2.0/3.0×10×25.4 | 12" | 300 | 1'' | 25.4 |
| 350×2.2/3.2×10×25.4 | 14'' | 350 | 1'' | 25.4 |
| 400×2.6/3.5×10×25.4 | 16'' | 400 | 1'' | 25.4 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We
guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have
different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers
additional benefits with specific advice, by our product
managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and
propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly
adjust according to detailed requirement.
