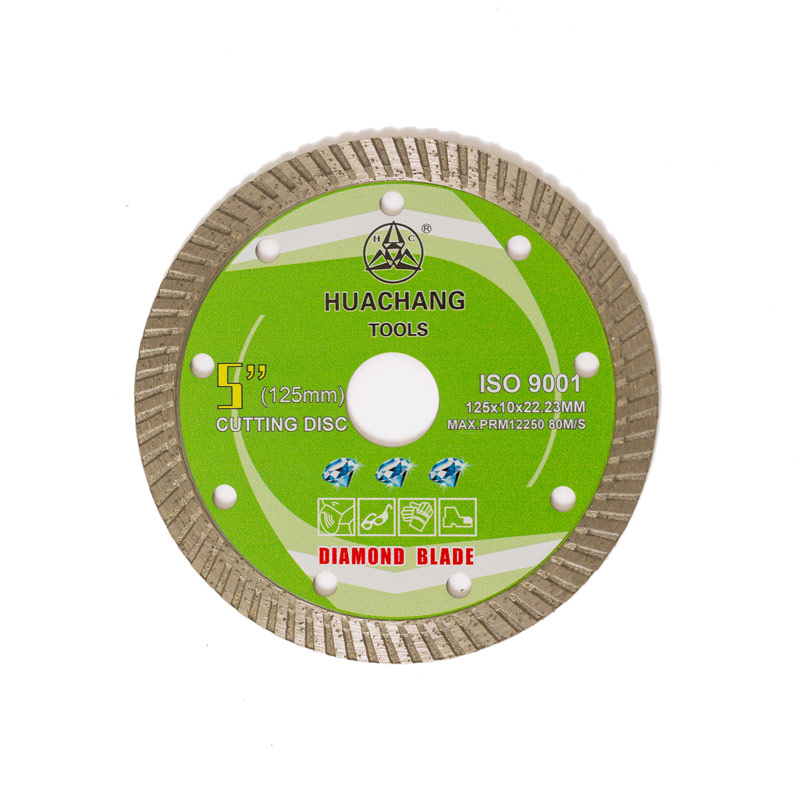

Cold Press 5inch '125×1.2/2.0×10×22.23mm Turbo Diamond Blade For
General Purpose , Ceramic , Marble And Concrete
Replacement Diamond Band Saw Blades have proven be an effective
diamond machining tools on a large variety of materials and
applications.Diamond blades are diamond coated for wet cutting
stone,glass,marble,tile,ceramic and other mineral based materials.
The Blade is made of seamless strong stainless steel Selected for
its resistance to corrosion and rust.
1. The Blades are coated with finest diamond abrasive.
2. The Diamond is bonded to stainless steel using techniques
developed are proven for over twenty years.
3. The Blade coated tine diamond allows to cutting cleanly and
easily all kinds of glass and other mineral materials, minimizing
grinding time and saving precious materials.
| Quick Details |
| item | diamond saw blade |
| Product Name | cold-pressed 125mm sintered diamond blade |
| Applica ion | ceramic ,tile,granite,marble, concrete and brick |
| Material | Diamond Segment &65Mn Steel Body |
| Finishing: | Painted&Polished |
| SIZE | 125×1.2/2.0×10×22.23mm |
| Advantage: | Imporved efficiency,cutting life and operator safety |
| Quality Grade: | cold Press Sintered Blade |
| Color | Black blue red purple green golden yellow |
| Process Type | Cold Press |
| Place of Origin | Jiangsu China |
| BrandName | HUACHANG |
| MOQ | 1000 Pieces |
| OEM | Accpted |
| Package | Inner Box+Outer Carton |
| Certification | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | Europe EN 13236 Standard |
| Main Market | Europe+America+France |
other more sizes
| SIZE(MM) | OUTER DIAMETER | ARBOR SIZE |
| INCHES | METRIC(MM) | INCHES | METRIC(MM) |
| 105×1.2/2.0×10×20 | 4" | 105 | | 20 |
| 110×1.2/2.0×10×20 | 4" | 110 | | 20 |
| 115×1.2/2.0×10×22.23 | 4.5" | 115 | 7/8'' | 22.23 |
| 125×1.2/2.0×10×22.23 | 5'' | 125 | 7/8'' | 22.23 |
| 150×1.4/2.4×10×22.23 | 6'' | 150 | 7/8'' | 22.23 |
| 180×1.6/2.6×10×22.23 | 7'' | 180 | 7/8'' | 22.23 |
| 200×1.6/2.6×10×22.23 | 8'' | 200 | 7/8'' | 22.23 |
| 230×1.8/3.0×10×22.23 | 9'' | 230 | 7/8'' | 22.23 |
| 300×2.0/3.0×10×25.4 | 12" | 300 | 1'' | 25.4 |
| 350×2.2/3.2×10×25.4 | 14'' | 350 | 1'' | 25.4 |
| 400×2.6/3.5×10×25.4 | 16'' | 400 | 1'' | 25.4 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We
guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have
different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers
additional benefits with specific advice, by our product
managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and
propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly
adjust according to detailed requirement.
