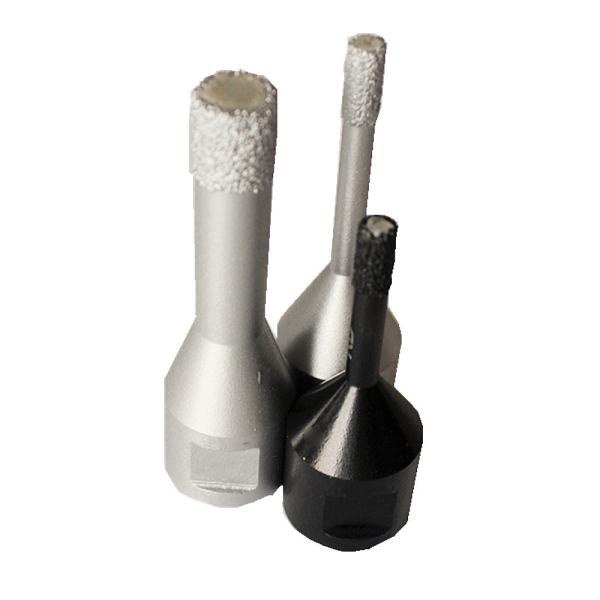

14×10×60×M14 Dry Diamond Core Drill Bits for Porcelain Ganite tile
Glass Ceramics Marble Drill Bits With High Quality
Specification : Diameter :5-40mm
Diamond width :10mm
Fast, smooth drilling and long life
Grit: #30,#40,#50,as customer request.
Thread: M14 Shank.
Special design are available upon request
Feature :
Diamond Core Drill& Bits Segment is made of top quality diamond and
Cobalt Powder,It is special shape for different drill
stem.Developed with new and sepcial formula to make high sharpness
& Long working life for customers .
Usage Application:
1. For Wet drilling and strong cast iron,Concrete,Constrction work
and Different hardness Slabs such as Marble
Granite,Micro-Crystal,Stone,Quartz,Ceraic,Jade,etc.
2. For fix up air-condition,Drilling hole in
wall,ground,floor,drainage pipes etc.
| item | value |
| Product information | Diamond Core Drills |
| Wheel Type | Angle Grinding Wheels |
| Size | 14×10×60×M14 |
| Customized support | OEM, ODM |
| Place of Origin | Jiangsu China |
| Brand Name | HUACHANG |
| Shape | M14 |
| Hardness | Hard |
| Viscosity | Good |
| Process Type | vacuum brazed |
| Abrasive | diamond |
| Product name | Diamond Core Drills bit for porcelain / Ceramic |
| Production Experience | From 1980s |
| Package | Inner Box+Outer Carton |
| Advantage: | imporved efficiency,cutting life and operator safety |
| Business Scope | Diamond cutting blade ,TCT saw blade ,Abrasive tools , Core drill
bit , Segment , Wire saw ,Concrete product |
| size | Diameter | Grit | Diamond Width | Effective Total Length | shank |
| 5×10×60×M14 | 5MM | #40 | 10MM | 60MM | M14 |
| 6×10×60×M14 | 6MM | #40 | 10MM | 60MM | M14 |
| 8×10×60×M14 | 8MM | #40 | 10MM | 60MM | M14 |
| 10×10×60×M14 | 10MM | #40 | 10MM | 60MM | M14 |
| 12×10×60×M14 | 12MM | #40 | 10MM | 60MM | M14 |
| 14×10×60×M14 | 14MM | #40 | 10MM | 60MM | M14 |
| 16×10×60×M14 | 16MM | #40 | 10MM | 60MM | M14 |
| 20×10×60×M14 | 20MM | #40 | 10MM | 60MM | M14 |
| 22×10×60×M14 | 22MM | #40 | 10MM | 60MM | M14 |
| 27×10×60×M14 | 27MM | #40 | 10MM | 60MM | M14 |
| 28×10×60×M14 | 28MM | #40 | 10MM | 60MM | M14 |
| 30×10×60×M14 | 30MM | #40 | 10MM | 60MM | M14 |
| 32×10×60×M14 | 32MM | #40 | 10MM | 60MM | M14 |
| 35×10×60×M14 | 35MM | #40 | 10MM | 60MM | M14 |
| 37×10×60×M14 | 37MM | #40 | 10MM | 60MM | M14 |
| 40×10×60×M14 | 40MM | #40 | 10MM | 60MM | M14 |
