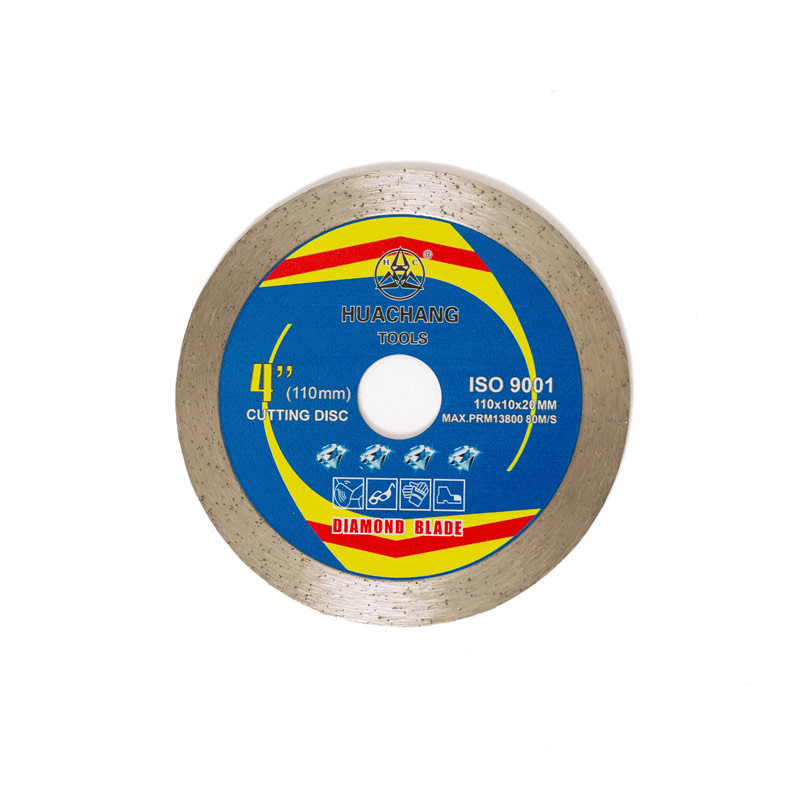

4.3inch '110×1.2/1.8×10×20mm Hot Press Diamond Tile Saw Blades For
General Purpose ,Ceramic , Marble And Concrete
Material
Diamond
Bond
Metal bond
Process
Hot press and cold press sintered
Substrate material
65 Mn
Cutting type
Wet And Dry
Features
Fast and smooth cutting, sharp and wear-resistan
Usage
For cutting floor tile, ceramic, porcelain, vitrified brick,
microcrystalline stone, terrazzo, granite, stone, glazed
tiles,antique tiles, polished tiles,etc.
Applicable machines
Marble machine, desktop cutting machine, angle grinder, etc.
| Quick Details |
| item | diamond saw blade |
| Product Name | hot-pressed 110mm sintered diamond blade |
| Applica ion | ceramic ,tile,granite,marble, concrete and brick |
| Material | Diamond Segment &65Mn Steel Body |
| Finishing: | Painted&Polished |
| SIZE | 110×1.2/1.8×10×20mm |
| Advantage: | Imporved efficiency,cutting life and operator safety |
| Quality Grade: | Hot Press Sintered Blade |
| Color | Black/Bluer/Red/Purple/Green/Golden/Yellow |
| Process Type | Hot Press |
| Place of Origin | Jiangsu China |
| BrandName | HUA CHANG |
| MOQ | 1000 Pieces |
| OEM | Accpted |
| Package | Inner Box+Outer Carton |
| Certification | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | Europe EN 13236 Standard |
| Main Market | Europe+America+France |
other more sizes
| SIZE(MM) | OUTER DIAMETER | ARBOR SIZE |
| INCHES | METRIC(MM) | INCHES | METRIC(MM) |
| 105×1.2/1.8×10×20 | 4" | 105 | | 20 |
| 110×1.2/1.8×10×20 | 4" | 110 | | 20 |
| 115×1.2/1.8×10×22.23 | 4.5" | 115 | 7/8'' | 22.23 |
| 125×1.2/1.8×10×22.23 | 5'' | 125 | 7/8'' | 22.23 |
| 150×1.4/2.0×10×22.23 | 6'' | 150 | 7/8'' | 22.23 |
| 180×1.6/2.2×10×22.23 | 7'' | 180 | 7/8'' | 22.23 |
| 200×1.6/2.2×10×22.23 | 8'' | 200 | 7/8'' | 22.23 |
| 230×1.8/2.6×10×22.23 | 9'' | 230 | 7/8'' | 22.23 |
| 300×2.0/3.0×10×25.4 | 12" | 300 | 1'' | 25.4 |
| 350×2.2/3.2×10×25.4 | 14'' | 350 | 1'' | 25.4 |
| 400×2.6/3.4×10×25.4 | 16'' | 400 | 1'' | 25.4 |
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We
guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have
different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers
additional benefits with specific advice, by our product
managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and
propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly
adjust according to detailed requirement.
