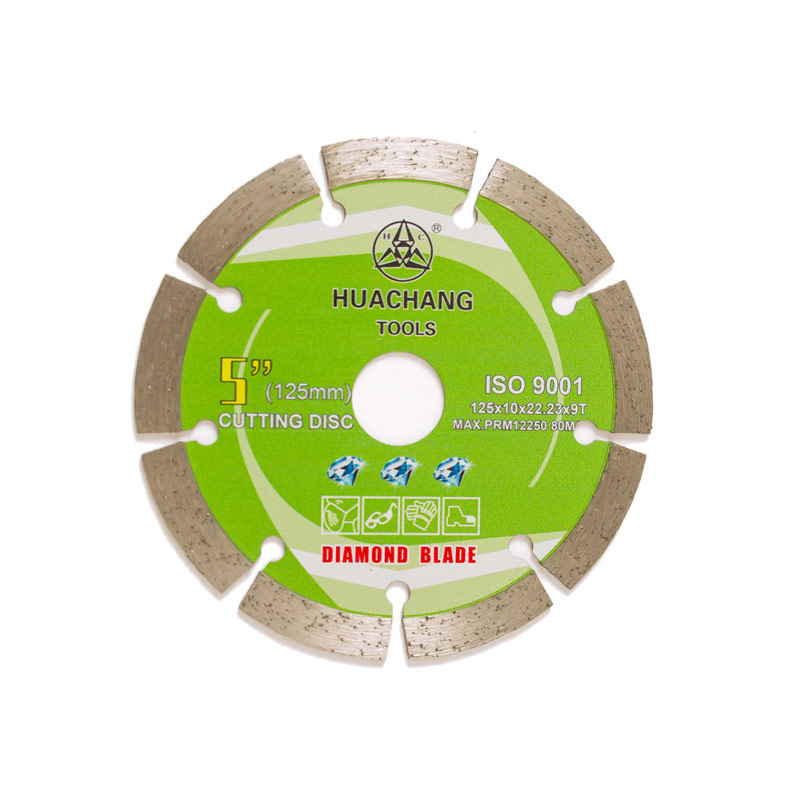

Cold Press 5inch '125×1.2/1.8×10×22.23×9T Segmented Diamond Blade
For General Purpose , Stone And Concrete
.Features: Fast cutting with free chipping,long life.
Application: Tile,ceramic tile, porcelain tile
Machinery: Angle grinder, marble cutter,circular saw, masonry saw,
table saw.
| Quick Details |
| item | diamond saw blade |
| Product Name | cold-pressed 125mm sintered diamond blade |
| Applica ion | ceramic ,tile,granite,marble, concrete and brick |
| Material | Diamond Segment &65Mn Steel Body |
| Finishing: | Painted&Polished |
| SIZE | 125×1.2/1.8×10×22.23×9T |
| Advantage: | Imporved efficiency,cutting life and operator safety |
| Quality Grade: | Cold Press Sintered Blade |
| Color | Blackblueredpurplegreengoldenyellow |
| Process Type | Cold Press |
| Place of Origin | Jiangsu China |
| BrandName | HUACHANG |
| MOQ | 1000 Pieces |
| OEM | Accpted |
| Package | Inner Box+Outer Carton |
| Certification | OSA,MPA ,ISO9001:2008,BV |
| Quality standard | Europe EN 13236 Standard |
| Main Market | Europe+America+France |
other more sizes
| SIZE(MM) | OUTER DIAMETER | ARBOR SIZE |
| INCHES | METRIC(MM) | INCHES | METRIC(MM) |
| 105×1.2/1.8×10×20×8T | 4" | 105 | | 20 |
| 110×1.2/1.8×10×20×8T | 4" | 110 | | 20 |
| 115×1.2/1.8×10×22.23×8T | 4.5" | 115 | 7/8'' | 22.23 |
| 125×1.2/1.8×10×22.23×9T | 5'' | 125 | 7/8'' | 22.23 |
| 150×1.4/2.0×10×22.23×12T | 6'' | 150 | 7/8'' | 22.23 |
| 180×1.6/2.2×10×22.23×14T | 7'' | 180 | 7/8'' | 22.23 |
| 200×1.6/2.2×10×22.23×14T | 8'' | 200 | 7/8'' | 22.23 |
| 230×1.8/2.6×10×22.23×18T | 9'' | 230 | 7/8'' | 22.23 |
| 300×2.0/3.0×10×25.4×22T | 12" | 300 | 1'' | 25.4 |
| 350×2.2/3.2×10×25.4×24T | 14'' | 350 | 1'' | 25.4 |
| 400×2.6/3.4×10×25.4×28T | 16'' | 400 | 1'' | 25.4 |
JIANGSU HUACHANG TOOLS MANUFACTURING CO., LTD. was established in
1980s, and has a long history of more than 20 years. We are now a
high technology enterprise with the capability of production, sales, and research of new technology.
We are supported with a powerful technology team, advanced
production line, and inspection equipment. We strictly conform to lS09001-2000 quality control system, and IS014001-2004 environment
system. Inspection between processes follows the EN standard. Our aim is to make“HUACHANG ”famous all over the world.
our production workshop
Q . How is your quality?
A. We have a very seriously control system(ERP system). We
guarantee the high performance of our products.
Q . Do you have different quality for different kind of stone?
A . Yes, according hardness of stone and stone's feature, we have
different typology respectively.
Q . If we need technical support, can you offer us?
A. Yes, we have an experienced team, offering our customers
additional benefits with specific advice, by our product
managerment
staff, engineers and technicians.
Q. How can we be your agent in our country?
A. Please inform us your detailed company, we will discuss and
propose helpful suggestion for you, and to find the best solution
for you.
Q . Do you offer free samples?
A. Normally we do not offer free samples, but we could properly
adjust according to detailed requirement.
